X-ray diffractometer

Department of Analytical Chemistry
Department of Biochemical Sciences
Department of Biophysics and Physical Chemistry
Department of Organic and Bioorganic Chemistry
Department of Pharmacognosy and Pharm. Botany
Department of Pharm. Chemistry and Pharm. Analysis
Department of Pharmaceutical Technology
Department of Pharmacology and Toxicology

Type: Xeuss Pro C

Supplier	Xenocs SAS
Year of Purchase	2025
Amount (inc. VAT)	12.6 mil. CZK
Funding (only if EU-funded)	NETPHARM; CZ.02.01.01/00/22_008/0004607
Location	Department of Social and Clinical Pharmacy Room No. 1A.0.11.02
Responsible Person	prof. PharmDr. Kateřina Vávrová, Ph.D.
Contact Person	Mgr. Petra Pullmannová, Ph.D.

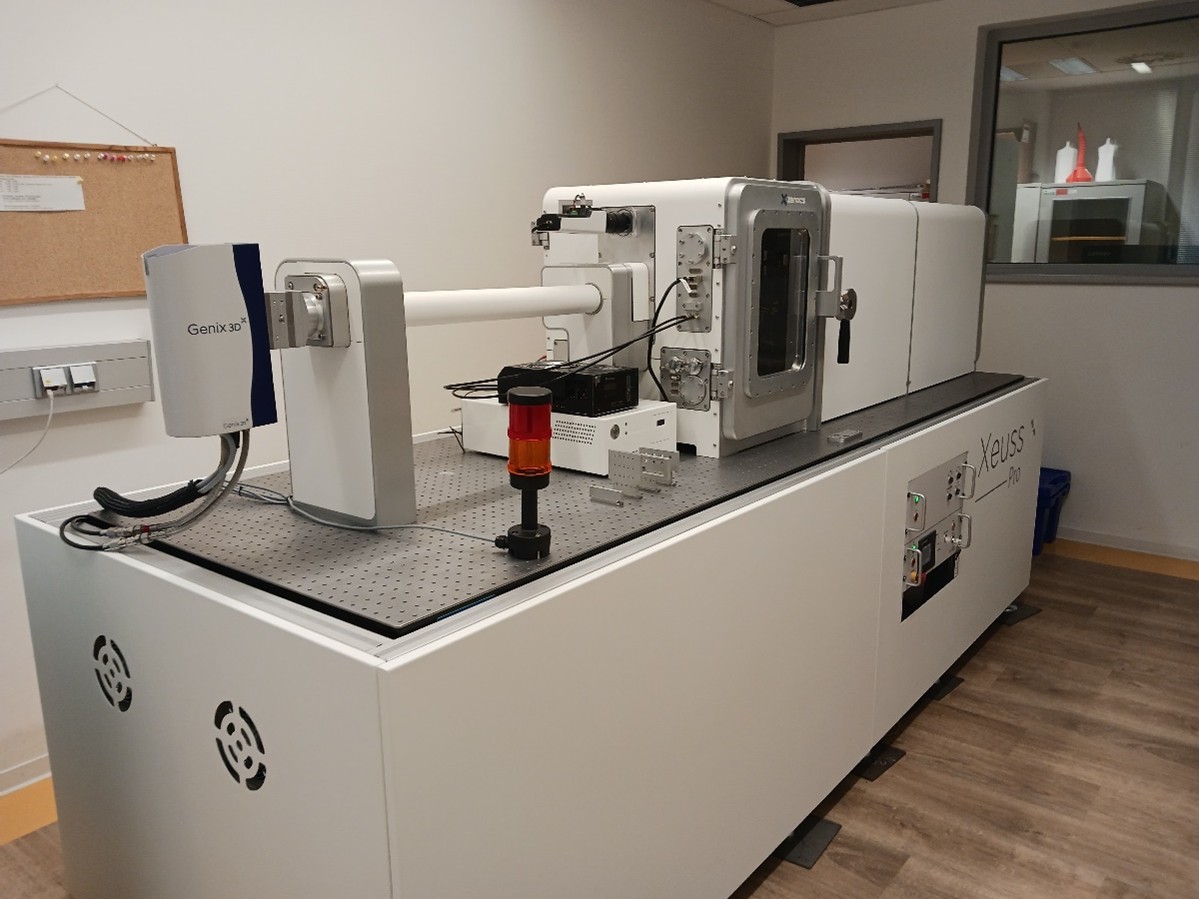

Photo of the instrument:

Regular Use of the Instrument:

The instrument can record X-ray scattered from solid samples and sealed gel or liquid samples in the transmission setup to obtain structural information about the sample. The measurable magnitude of the scattering vector q ranges from 0.015 to 49.3 nm^-1. Small and wide angle grazing incidence X-ray diffraction can be recorded on planar samples. The temperature controlled experiments are available in a temperature range depending on the sample type.
